Benefits
Real-time GPS tracking and user messaging ensures two-way contact, security and peace of mind for your field personnel from any remote location by:
• protecting personnel in the field through instantaneous knowledge of their location, no matter how remote;
• a cost-effective communication link for field personnel that is not constrained by geographic limitations of cellular networks; and
• reliable, all-weather power solutions.
Rugged construction for harsh conditions

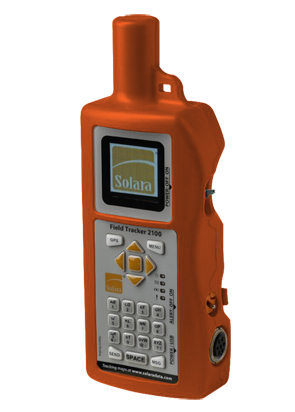

Field Tracker 2100 is designed and engineered with:
• a rugged, waterproof case;
• a waterproof keypad with direct tactile feedback;
• a sealed battery compartment;
• shock-mounted colour display;
• antennas integrated into the case for maximum protection;
• vibration and shock tolerance; and
• recessed power and alert switches that prevent unintentional movement.
How it works
Operation is simple and automated with:
• two-way communication using the Iridium satellite system, ensuring every message is successfully sent and received;
• intuitive free-form text message entry;
• pre-defined standard and custom user messages to ensure accurate and simple communication;
• full-function text messaging through the Solara web site;
• emergency notification for distress signalling to a region-specific agency or organization of your choice (concurrent and ‘‘fallback’’ notification options for multiple contacts available);
• optional 24/7 routine message and Alert notification monitoring;
• easy user configuration of customized settings through the Tracker on-screen menus and the secure Solara user web site;
• system access options through Solara to suit your needs;
• flexible air time solutions through Solara; and
• user manual and quick-start sheet to get you up and running quickly.
Power:
• internal rechargeable nickel metal hydride (NiMH) batteries and battery charger
• optional external solar panel, external AC adapter or vehicle accessory connector plug (12 or 24 volts DC)
Size and weight:
• 15cm (6’’) plus 3 cm (1.2’’) antenna x 7.5 cm (2.8’’) x 4.5 cm (1.75’’) maximum dimensions of curved shape
• Approx. 500 g (1.1 lbs.) weight (400g with optional lithium internal battery, available in 2nd quarter of 2010)
Temperature:
• -20° C (-4°F) to 60° C (140°F)
•-40° C (-40°F) to 60° C (140°F) (with cold weather kit or direct connect to power)
Shock and Vibration Resistance:
• MIL-STD-810 G ; 7.5g RMS random vibration 20 to 2000 Hz with 10G shock in
each axis, plus survives 70G crash test
Water Resistance:
• IP68 certification pending; waterproof, submersible to 1 m (3.3’) for one hour
Altitude:
• operation to 13,000 m (40,000 ft)
Operation Area:
• the Iridium satellite network provides complete global coverage.
* Specifications are subject to change without notice. CE and C-tick
Accessories
• Belt carrying pouch
•Vehicle mounting cradle with wide choice of mounting arms and mounts
• Flexible solar panel, folds up to fit in a pocket
• External battery/cold-weather kit for user-supplied AA lithium 1.5V batteries
•Choice of vehicle accessory plug (‘‘cigarette lighter’’) power cables; charge only or direct operate and charge
• Choice of AC/DC charge adapter; 5A 110V for running any accessory load or 100V --- 240V universal adapter
• USB firmware programming/communication cable
• Noise-filtered, direct power connector harness to vehicle battery or electrical system
